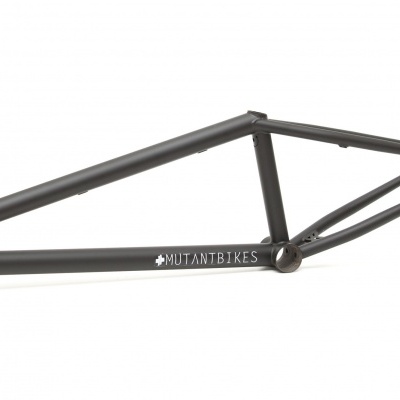

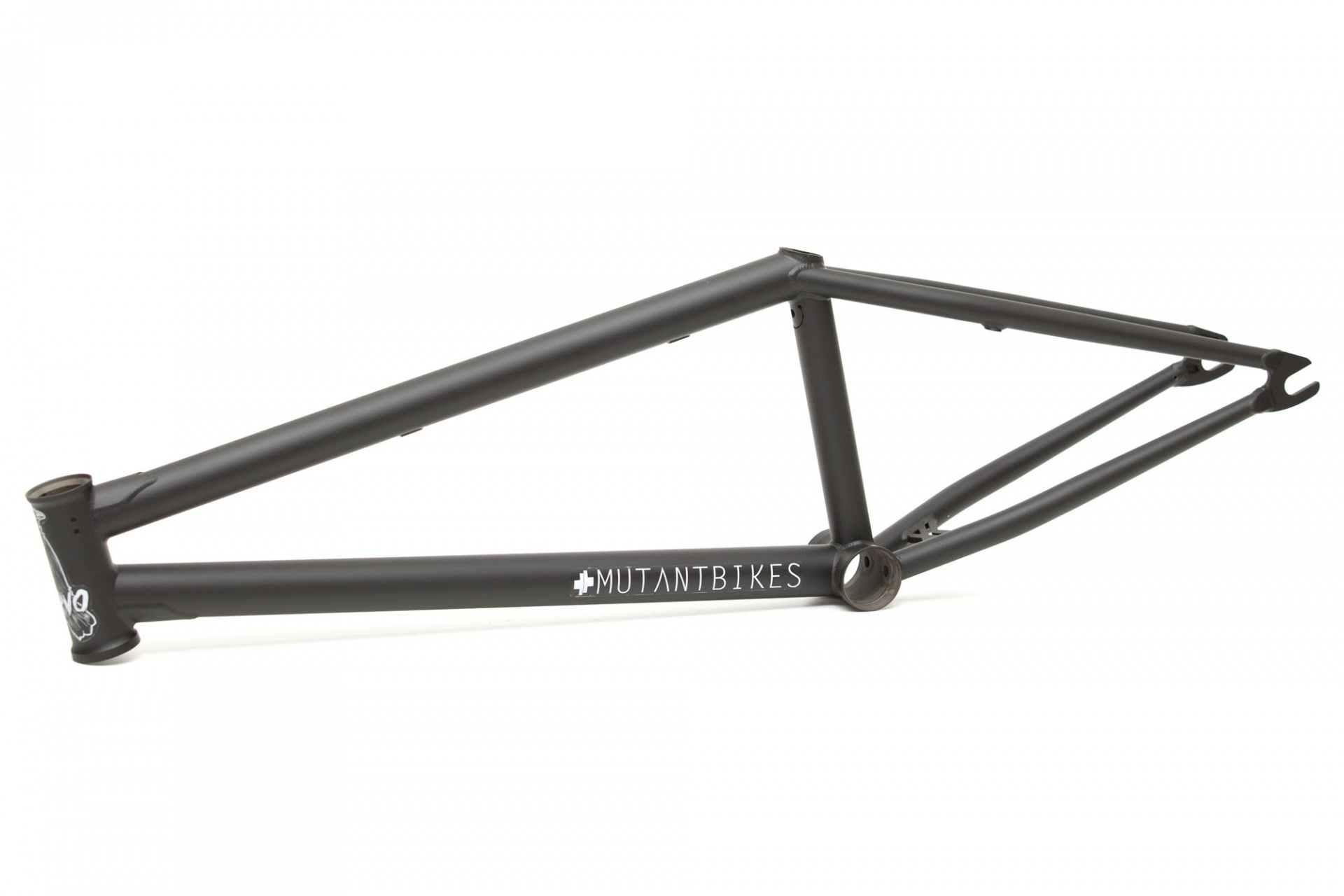

CORVO FRAME V2

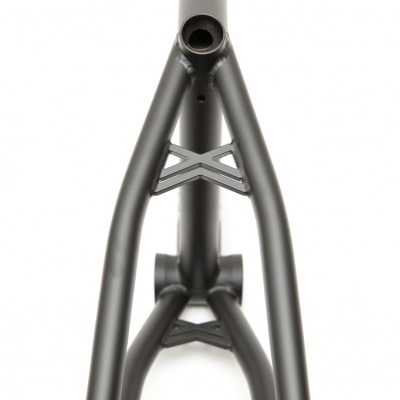

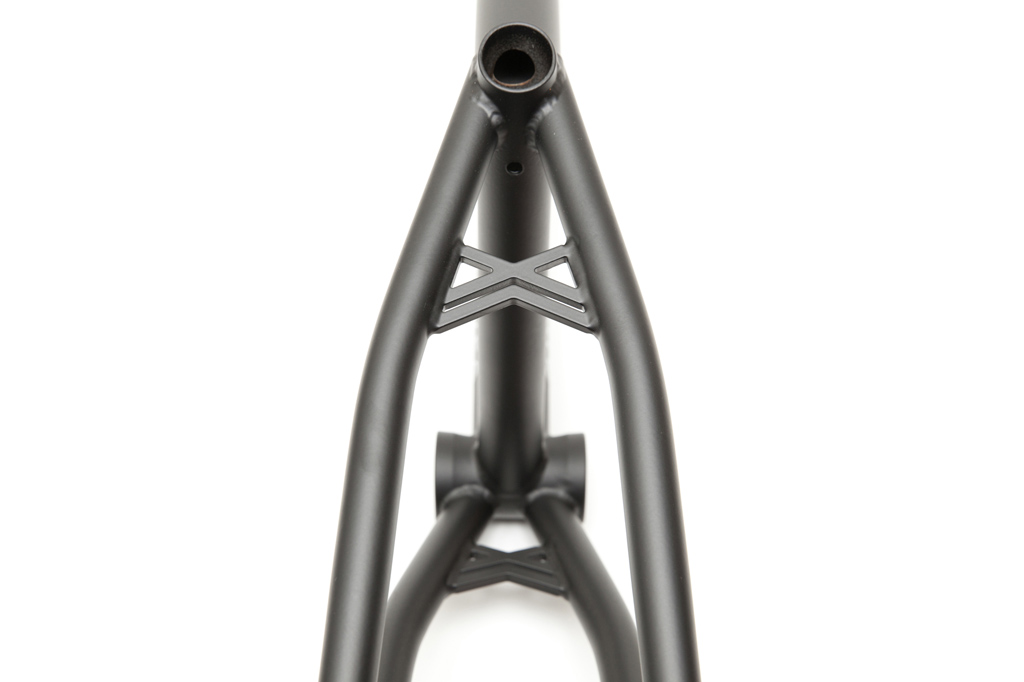

NEW FEATURES ON THE CORVO V2 IS MID BB AND NEW BRAKE MOUNTS TYPE, STRONGER AND SIMPLE. CORVO WAS DESIGNED FOR THE STREET RIDERS TODAY, FEATURES A DOUBLE GUSSET IN THE TOP AND DOWN TUBE, THE BB IS HIGH FOR DOESN’T HIT THE CURBS AND RAILS, HIGH STANDOVER, HEAD TUBE HAS MUTANT LOGO CNC ENGRAVED, REAR TRIANGLE TUBES ARE TAPERED AND SMALL DROPOUTS HEAT TREATED.
SSC PIVOTAL SEAT POST INCLUDED.

MATERIAL
Made with Sanko tubing double butted. Top tube with double internal gusset.

TOP TUBE LENGTHS
20.59″, 20.79″, 21.06″ and 21.38″

REAR END
13.35″ till 13.75″

HEAD TUBE ANGLE
75.4º

SEAT TUBE ANGLE
72º

BB HEIGHT
299,72mm / 11.80”

STANDOVER
222,50mm / 8.76”

SEATCLAMP
Integrated SSC System (comes with free pivotal post drilled to 6 positions to adjust)

BB TYPE
“NEW” Mid BB external machined, heat treated

DROPOUTS
Small with 5mm thick, heat treated, internal machined

REMOVABLE
“NEW” Seat stay brake mounts, cable guides and gyro tabs

HEADSET
Integrated heat treated, external machined with Mutantbikes logo CNC. (do not use lose ball headset in our frames, they are made to use sealed bearing only)

OTHER FEATURES

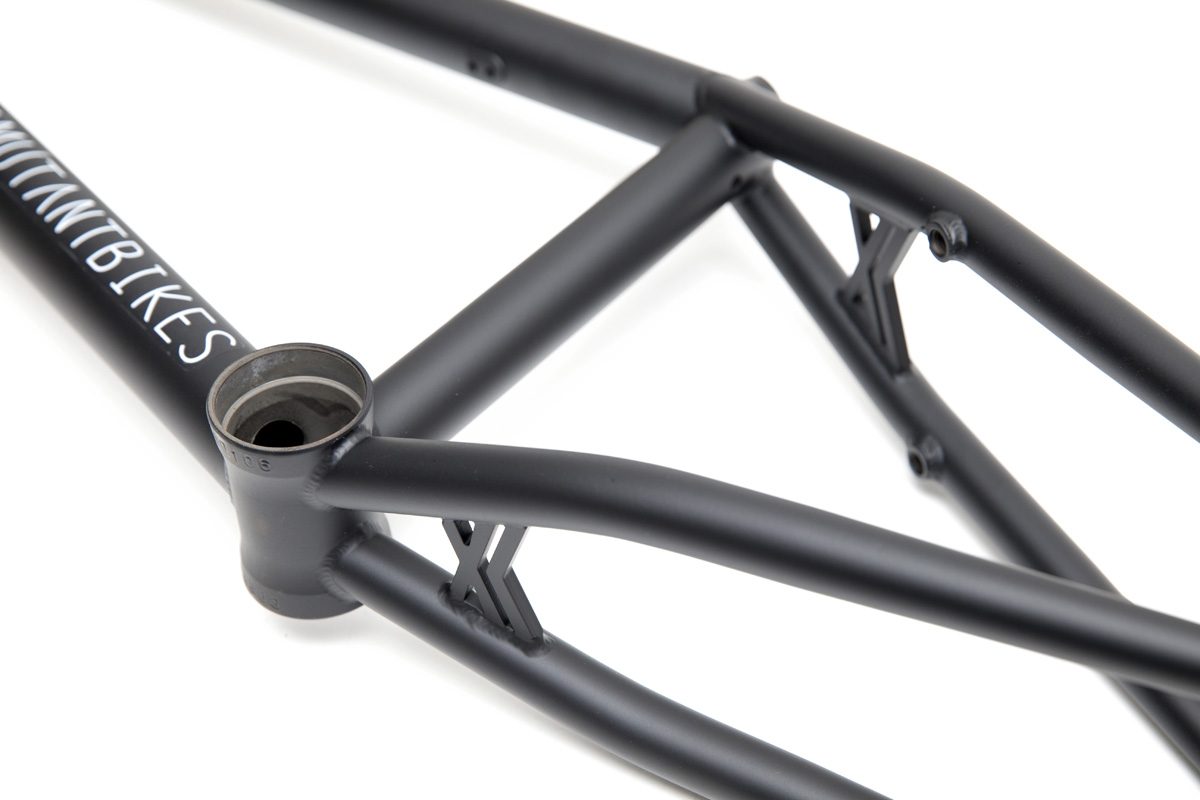

Chain Stay and Seat Stay tapered tubes. Seat/Chain Stay bridge heat treated, 5mm thick

COLORS
Flat black, Gloss Glitter Grey and Gloss Translucent Red

WEIGHT
2,27Kg / 5.0 lbs.
